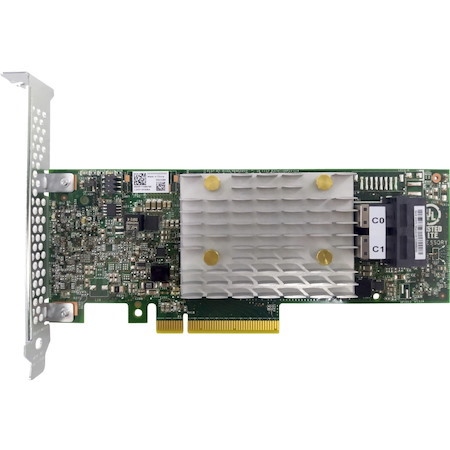

The Lenovo ThinkSystem 4350-8i and 4350-16i SAS/SATA 12Gb HBAs are high performance host bus adapters manufactured by Lenovo for internal storage connectivity in ThinkSystem servers. They integrate the latest SAS technology and offer eight or 16 lanes of 12 Gbps SAS. With a low-profile form-factor design, these adapters offers two or four x4 internal mini-SAS HD connectors.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www3.lenovo.com/au/en
- Brand Name
- Lenovo
- Product Type
- SAS Controller
- Technical Information
- Host Interface
- PCI Express 3.0 x8
- Controller Type
- 12Gb/s Fibre Channel
- RAID Supported
- No
- RAID Levels
- JBOD
- Device Supported
- Server
- Operating System Supported
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux 7.7
- Red Hat Enterprise Linux 7.8
- Red Hat Enterprise Linux 7.9
- Red Hat Enterprise Linux 8.1
- Red Hat Enterprise Linux 8.2
- Red Hat Enterprise Linux 8.3
- Red Hat Enterprise Linux 8.4
- Red Hat Enterprise Linux 8.5
- Red Hat Enterprise Linux 8.6
- Red Hat Enterprise Linux 9.0
- SUSE Linux Enterprise Server 12 SP3
- SUSE Linux Enterprise Server 12 SP4
- SUSE Linux Enterprise Server 12 SP5
- SUSE Linux Enterprise Server 15 SP1
- SUSE Linux Enterprise Server 15 SP2
- SUSE Linux Enterprise Server 15 SP3
- SUSE Linux Enterprise Server 15 SP4
- Ubuntu 18.04.5 LTS
- Ubuntu 20.04 LTS
- Ubuntu 22.04 LTS
- VMware ESXi 6.7 U2
- VMware ESXi 6.7 U3
- VMware ESXi 7.0 U1
- VMware ESXi 7.0 U2
- VMware ESXi 7.0 U3
- Interfaces/Ports
- Total Number of SAS Ports
- 8
- Number of SAS Ports (Internal)
- 8
- SAS Connector Details
- 2x Mini-SAS HD x4 (SFF-8643)
- Physical Characteristics
- Height
- 64 mm
- Length
- 167 mm
- Form Factor
- Plug-in Card
- Miscellaneous
- Platform Supported
- Linux
- PC
- Environmentally Friendly
- Yes
